NEUSPEED Anti-Sway Bar | Rear 22mm Sport • F55/F56/F57

$269.96 $299.95
SKU: NM.258846

Are you looking to upgrade your vehicle's suspension, but want to do it in an effective and fun way? Look no further than a NM Engineering's Anti-Sway Bar! Precision-engineered with smooth mandrel bends and aerospace-quality steel, this bar is designed to reduce body roll during cornering so you can gain better steering response, get more grip on the street, and whip around corners like a champ. With its graphite-impregnated urethane bushings, you don't have to sacrifice ride comfort when pushing your vehicle to the limit – NM Engineering will make sure you stay comfortable while taking those hard cornering turns.

What are you waiting for? Highly rated by customers everywhere, this high-performance component is simply one of the best ways to add an exciting flair of sportiness to your ride. With NM Engineering Anti-Sway Bars, it’s time for you to experience a true thrill behind the wheel!

Designed and Tested at our R&D facility in Camarillo, California. NM Engineering Anti-Roll Bars are tuned to deliver high-performance handling on our USA roads, auto crossing, and/or race tracks.

With our 40+ years of experience in suspension tuning for street and track, we offer the correct size bars for the best balance and ultimate handling.



F56 SWAY BAR COMPARISON
Rate 1 Rate 2
lbs./in. Increase over 'Base' lbs./in. Increase from 'Base'
OEM Base 19MM Solid 182 - - -
OEM Sport / JCW 21mm Tubular 253 39% - -
NM Eng. 22mm Solid 298 63% 375 106%
NM Eng. 25mm Tubular 510 180% 642 252%
Notes

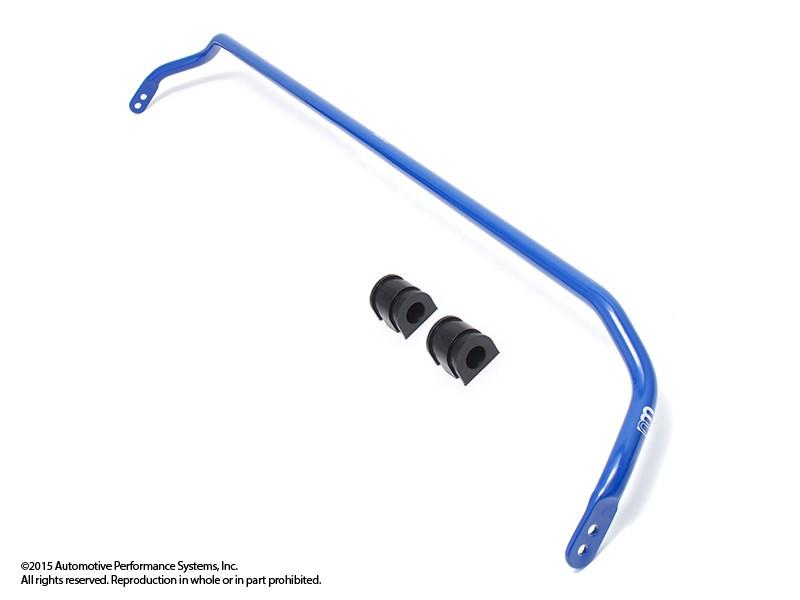

NM Eng Anti Sway Bar features:
  • Mandrel-bent solid Chromoly bar providing consistent diameter throughout for precise torsion motion
  • Forged ends (not cheapy welded plate) with two adjustment mounting holes
  • Graphite-impregnated urethane bushing
  • Glossy blue powder coat finish
Optional Billet clamp kit features:
  • Billet 7075-T6 aerospace grade sway bar bracket
  • 90° Zerk fitting for ease of re-greasing
  • Graphite impregnated urethane bushing





Fits:

MINI
Convertible
F57 LCI2 (2022-up)
1.5T
MINI
Convertible
F57 LCI2 (2022-up)
S 2.0T
MINI
Convertible
F57 LCI2 (2022-up)
JCW 2.0T
MINI
Convertible
F57 LCI (2019-2021)
1.5T
MINI
Convertible
F57 LCI (2019-2021)
S 2.0T
MINI
Convertible
F57 LCI (2019-2021)
JCW 2.0T
MINI
Convertible
F57 (2016-2018)
1.5T
MINI
Convertible
F57 (2016-2018)
S 2.0T
MINI
Convertible
F57 (2016-2018)
JCW 2.0T
MINI
Hardtop
F56 LCI2 (2022-up)
1.5T
MINI
Hardtop
F56 LCI2 (2022-up)
S 2.0T
MINI
Hardtop
F56 LCI2 (2022-up)
JCW 2.0T
MINI
Hardtop
F56 LCI2 (2022-up)
GP 2.0T
MINI
Hardtop
F56 LCI (2019-2021)
1.5T
MINI
Hardtop
F56 LCI (2019-2021)
S 2.0T
MINI
Hardtop
F56 LCI (2019-2021)
JCW 2.0T
MINI
Hardtop
F56 (2014-2018)
1.5T
MINI
Hardtop
F56 (2014-2018)
S 2.0T
MINI
Hardtop
F56 (2014-2018)
JCW 2.0T
MINI
Hardtop 4-Door
F55 LCI2 (2022-up)
1.5T
MINI
Hardtop 4-Door
F55 LCI2 (2022-up)
S 2.0T
MINI
Hardtop 4-Door
F55 LCI2 (2022-up)
JCW 2.0T
MINI
Hardtop 4-Door
F55 LCI (2019-2021)
1.5T
MINI
Hardtop 4-Door
F55 LCI (2019-2021)
S 2.0T
MINI
Hardtop 4-Door
F55 LCI (2019-2021)
JCW 2.0T
MINI
Hardtop 4-Door
F55 (2015-2018)
1.5T
MINI
Hardtop 4-Door
F55 (2015-2018)
S 2.0T
MINI
Hardtop 4-Door
F55 (2015-2018)
JCW 2.0T
