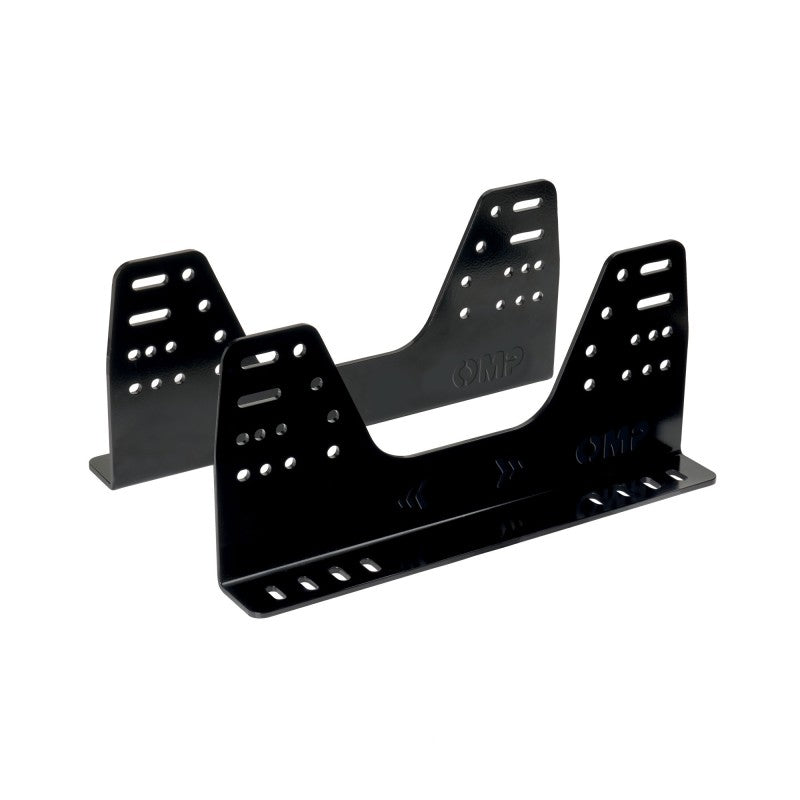

OMP Aluminum Seat Mounting Brackets - 6mm x 400mm

$199.00
SKU: O00M HC0-0924
Minus Plus

OMP's aluminum side-mount seat brackets bolt a FIA-spec racing seat to your chassis floor while keeping the seat as low as possible. Machined from 6mm aluminum with a black powder coat finish, each bracket offers a row of mounting holes and slots so you can dial in the exact seat height and fore-and-aft position before final installation.

Important Compatibility Information

Built for side-mount racing seats with bolt holes spaced 289mm (11.4in) center-to-center, which covers most fiberglass and carbon-shell seats from OMP, Momo, Sabelt, and Sparco. Confirm your seat's bolt spacing before ordering. These brackets bolt directly to the seat shell; a sliding rail kit, sold separately, is needed between the bracket and the seat if you want fore-and-aft adjustment on the rail itself.

Features

  • 6mm thick aluminum construction with black powder coat finish
  • Minimum of 16 mounting positions from a combination of 4 heights and 4 fore-and-aft hole sets
  • Complies with FIA Appendix J Article 253

What's Included

  • OMP 6mm aluminum seat brackets, 400mm length (x2, one for each side)

Required, not included: mounting hardware to attach the bracket to your specific seat and chassis, and a sliding rail kit such as the OMP Universal Seat Mounting Sliding Rail Kit if you want the seat to slide on the bracket.

Product Specifications

  • SKU: O00M HC0-0924
  • MPN: HC0-0924
  • GTIN: 8027280651311
  • Material: 6mm aluminum
  • Length: 400mm
  • Mounting positions: 16 minimum
  • Seat bolt spacing: 289mm (11.4in) center-to-center
  • Quantity: pair (2 brackets)

Need a Different Bracket?

Frequently Asked Questions

Do I need anything else to mount my seat?
You will need mounting hardware sized for your chassis and, if you want the seat to slide, a sliding rail kit that mounts between the bracket and the seat.

Will this fit my seat?
It fits side-mount seats with 289mm center-to-center bolt spacing. Measure your seat's mounting holes before ordering, or contact your BMP Tuning rep if you are not sure.

Is this FIA legal?
The bracket itself complies with FIA Appendix J Article 253. Whether your full seat-and-mount combination is legal for a given series depends on your seat and installation.
