VRSF 1000WHP 7.5" Stepped Race Intercooler - E82/E88 135i & E90/E92 335i (N54/N55)

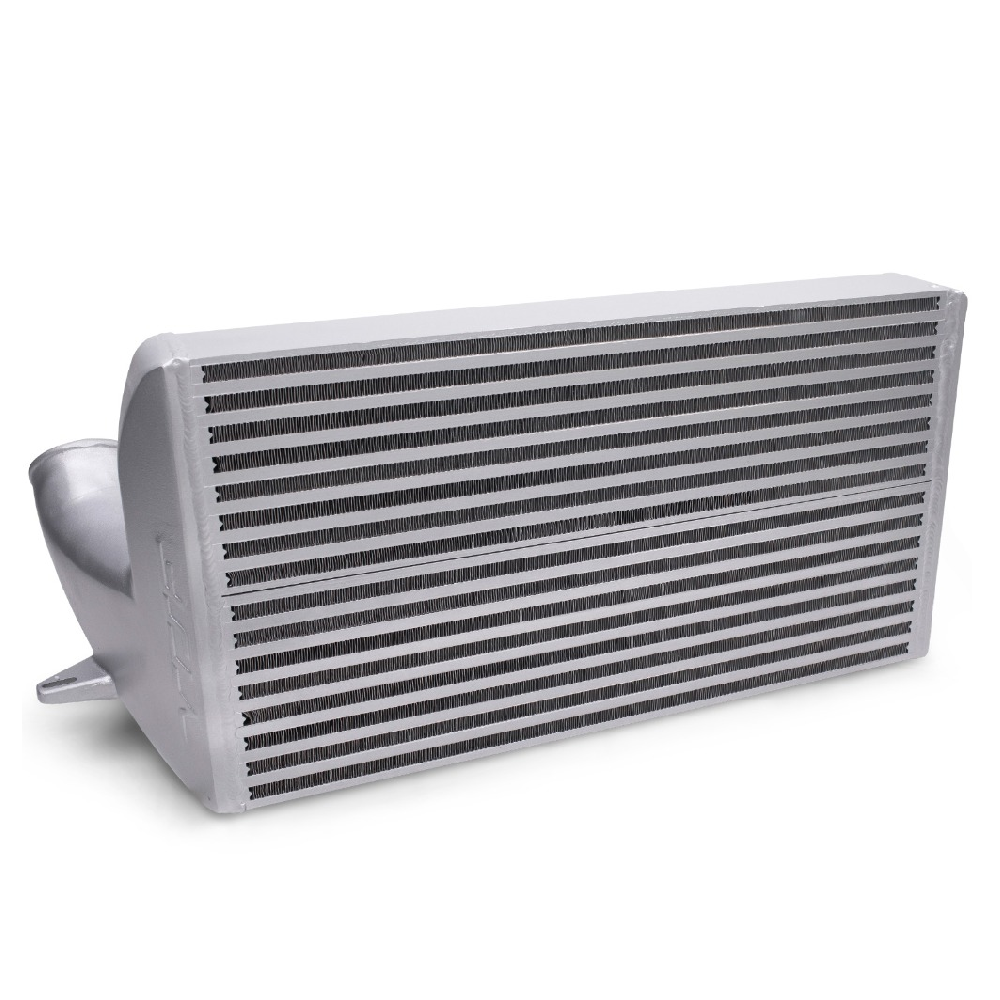

The factory intercooler on your N54 or N55 135i or 335i is sized for stock boost, and it heat-soaks fast once you start pushing more air through it. VRSF's 7.5" Stepped Race Intercooler replaces it with an ultra-high-density, 1100hp-rated bar-and-plate core built specifically for cars running larger twin- or single-turbo setups, keeping intake temps down to reduce heat soak, power loss, and the risk of pre-detonation.
This core has been part of record-setting N54 builds, including Motiv's world-record 1100whp N54, and is the first intercooler VRSF has officially rated to support 1000whp.
Features
- Ultra-high-density bar-and-plate core, rated to support up to 1100whp
- CFD-designed, one-piece cast aluminum end tanks for improved flow and durability over sheet-metal designs
- Retains the factory fan shroud via built-in mounting tabs
- Fits left-hand-drive and right-hand-drive models, including xi (AWD)
- Hand-finished and pressure-tested for a leak-free fit
What's Included

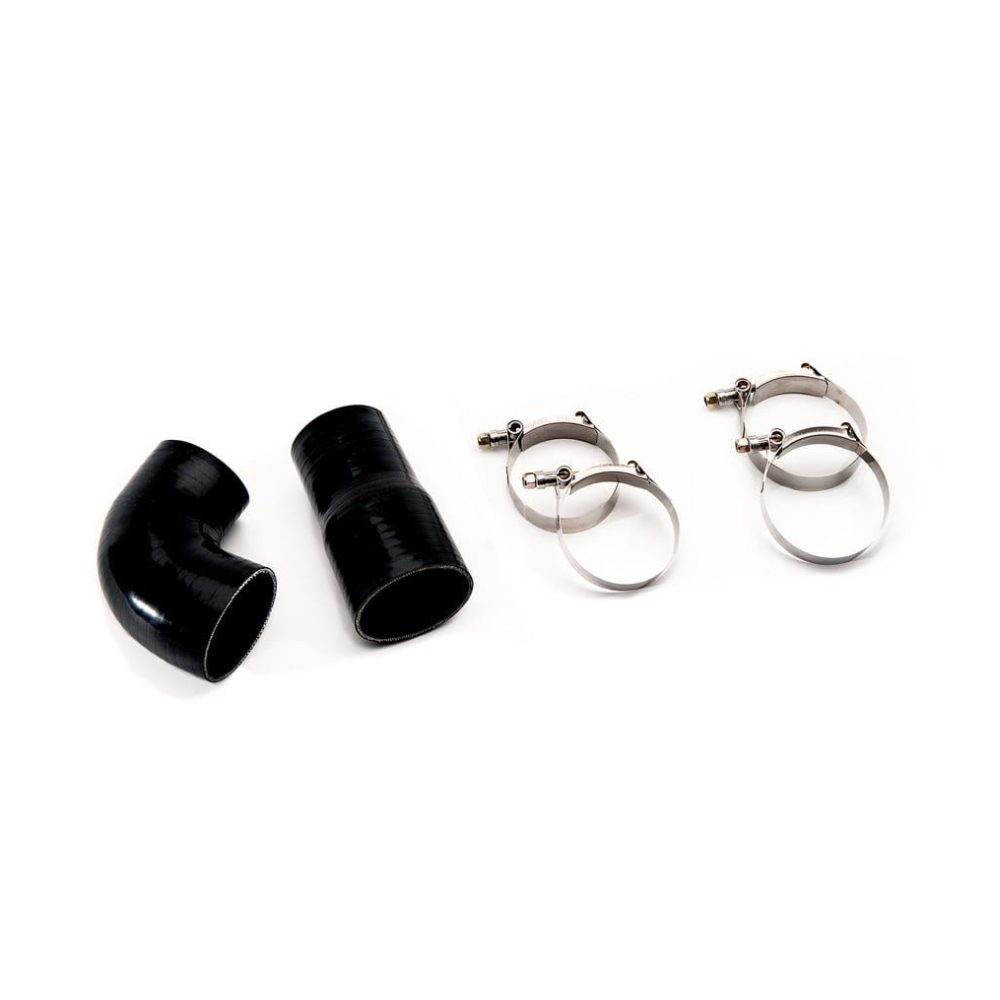

- VRSF 7.5" stepped race intercooler core
- Lower charge pipe
- Couplers and stainless steel t-bolt clamps
Installation Notes
Installation requires trimming the black plastic shroud behind the bumper; the bumper itself does not need to be trimmed. Typical install time is under 2.5 hours.
Product Specifications
- Fits: 2008-2011 BMW 135i (E82), 2007-2011 BMW 335i/335xi (E90/E91/E92/E93), 2011-2012 BMW 335is (E92)
- SKU / MPN: 10903050
- Vendor: VRSF
Frequently Asked Questions
How much power can this core support?
VRSF rates this core for up to 1100whp, and it has been used in record-setting N54 builds.
Does installation require any cutting?
Yes, the black plastic shroud behind the bumper needs to be trimmed. The bumper itself does not require trimming.
Does this retain the factory fan shroud?
Yes, VRSF builds in mounting tabs so the factory fan shroud bolts back on.
